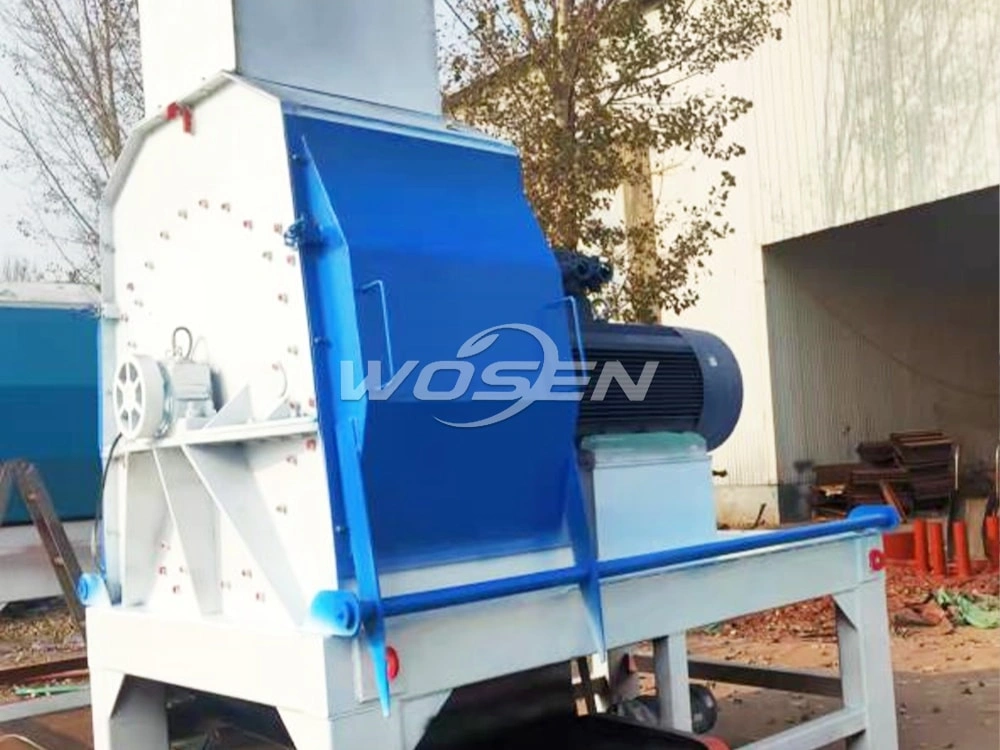

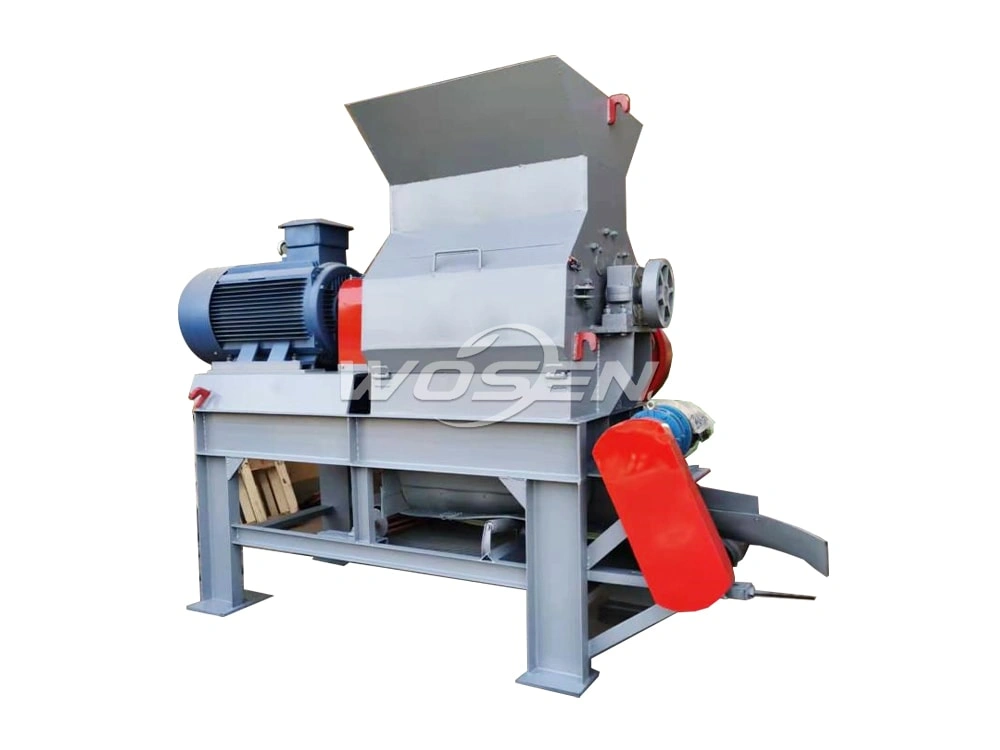

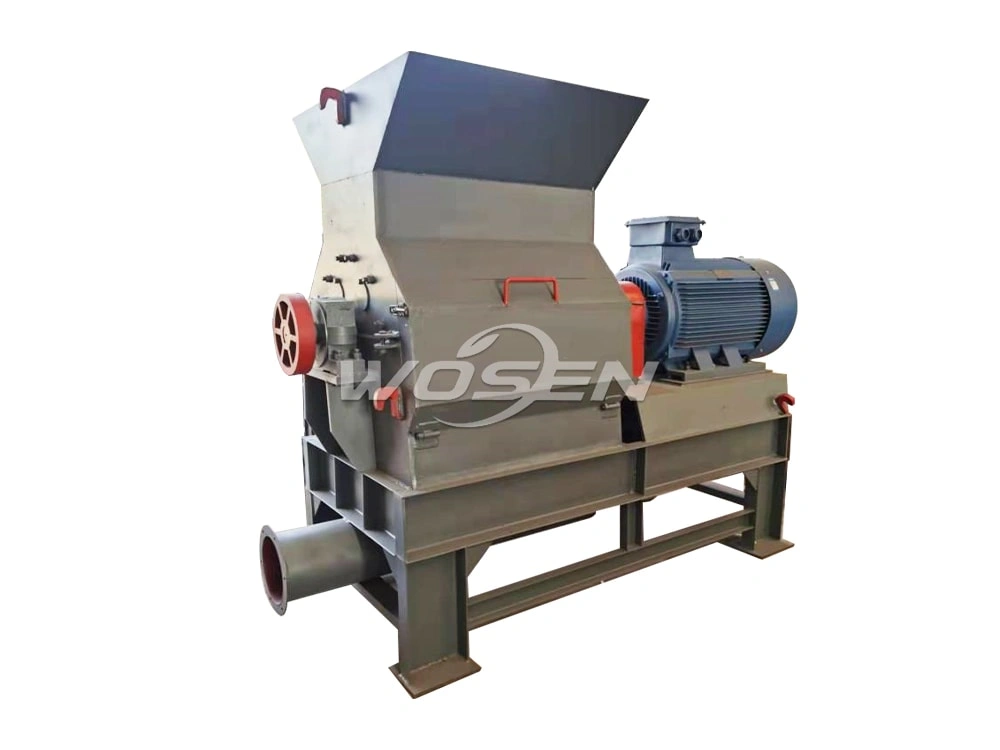

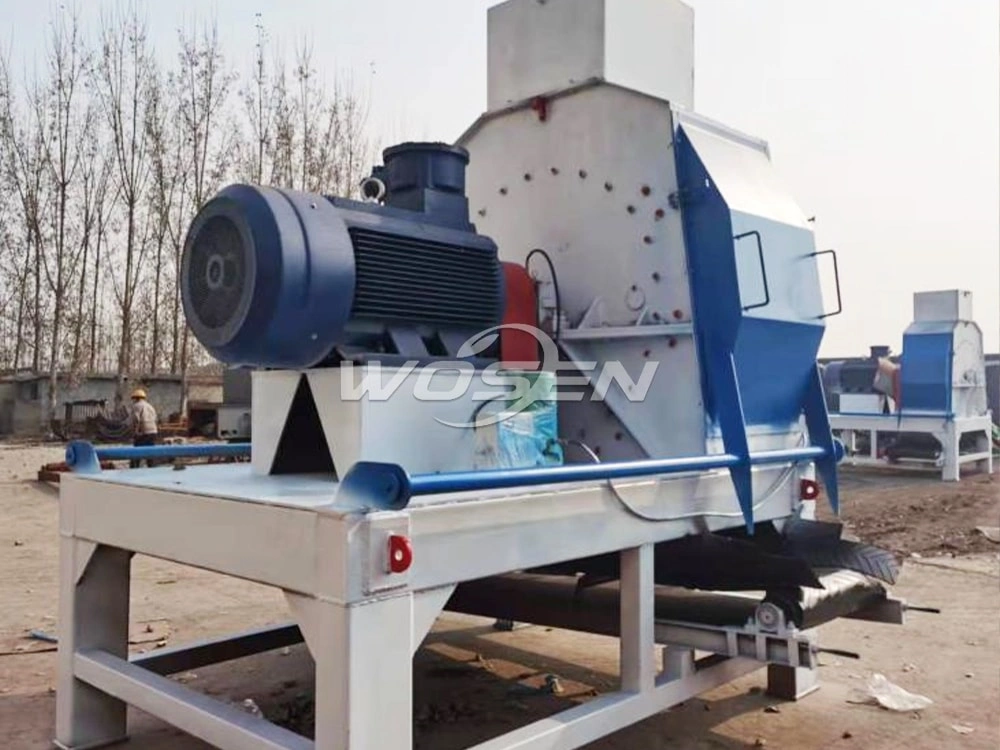

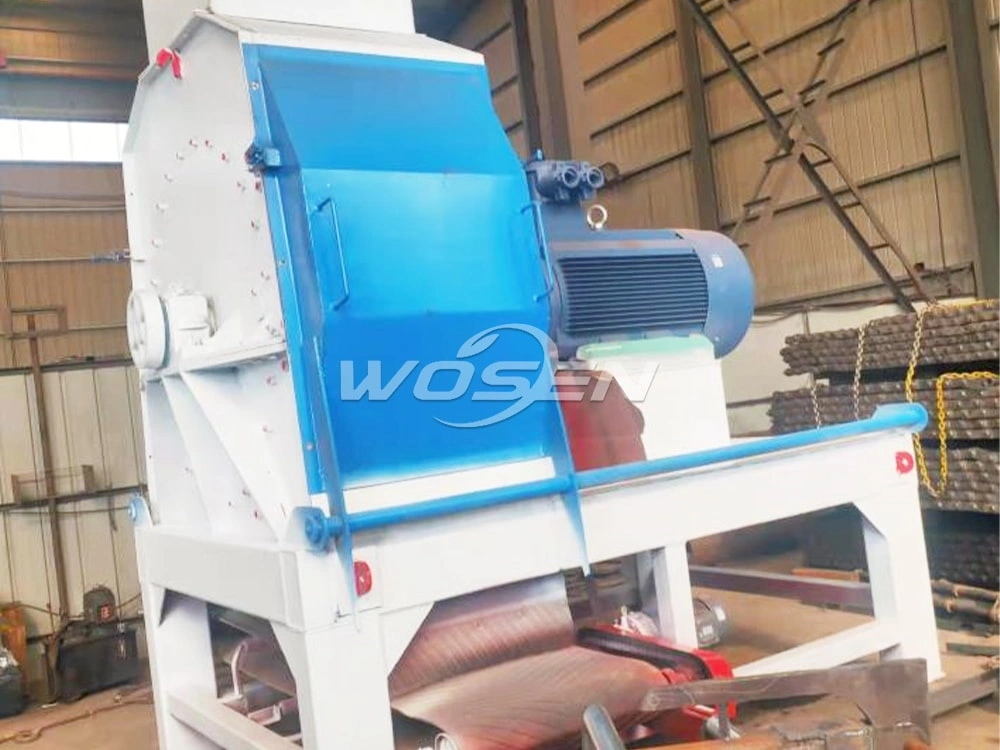

Wood Sawdust Machine

  • Large wood sawdust machine is mainly composed of crushing device, spiral discharging and fan. The wood is sent to the crushing chamber of the crusher through a belt conveyor, and can be sent to the crushing device for further crushing without drying. The crushed sawdust is sent to the gathering place by spiral.

Introduction

Large wood sawdust machine is mainly composed of crushing device, spiral discharging and fan. The wood is sent to the crushing chamber of the crusher through a belt conveyor, and can be sent to the crushing device for further crushing without drying. The crushed sawdust is sent to the gathering place by spiral.

Wood sawdust machine is reasonably designed, with low power consumption and large output. Wood sawdust machine has stable operation, low energy consumption,good quality of finished wood sawdust, and low processing cost,the processed sawdust can be formed in one time.

Parameters
Specification WS650-1300 WS800-1500 WS1000-1600
Feeding Inlet 650mm 800mm 1000mm
Blade Shaft Diameter 1300mm 1500mm 1600mm
Hammer Blade Quantity 84 PCS 84 PCS 84 PCS
Motor Power 132KW 160KW 200KW
Max Production Capacity 4-5 Ton/Hour 6-8 Ton/Hour 8-10 Ton/Hour
Cyclone Dust Collector 1 Set 1 Set 1 Set
Weight 4100kg 4500kg 5000kg
Applications

The application areas of wood sawdust machine include:



Production of paper and cardboard: Wood chips can be crushed to produce paper and cardboard.

Production of plywood and wood products: Wood chips can be crushed to produce plywood, wood composite materials and wood products, etc.

Production of biomass energy: Wood chips can be crushed to produce biomass energy, such as wood chip fuel, biomass fuel, etc.

Soil conditioner: Wood chips can be used as a soil conditioner to increase the organic matter content of the soil.

Animal feed: Wood can be crushed to be used as animal feed, such as wood crushed material, wood cellulose, etc.



The application of wood powder machine not only improves the utilization rate of wood, but also contributes to environmental protection and resource recycling.
